Figure 1 - '02 Nissan Quest

If you have one of these types of Nissan Quest (or Mercury Villager or Ford Windstar), then you may likely have one of the radios shown in Figure 2...and even more likely to be experiencing the blank display problem (and possible the CD eject problems).  The following are the first steps to getting your radio working again.  Once you have the radio out of the dash, then you may want to consider the Save My Sanity Swap program or the Do-It-Yourself repair...either way, once you have the radio out of the dash, you've practically done the hardest part of getting your radio fixed.


Figure 2 - '02 Nissan Quest
(same for
Mercury Villager or Ford Windstar)

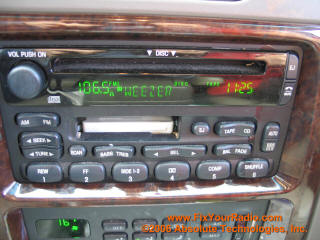

Figure 2 shows the neat feature of this radio in which the RDS feature is showing the artist (Weezer) of the song playing...you too, can see this, once you get  your display fixed.

Getting your Radio out of a Nissan Quest (or Mercury Villager or Ford Windstar)

The first step to the radio repair is to remove the cup holder / ashtray from the dash.  This is done by pushing in the two buttons (one on each side) as indicated in Figure 3 below.

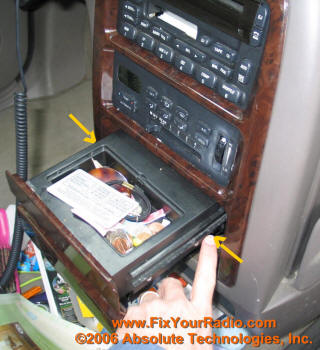

Figure 3 - Removing Drink Tray / Ash Tray

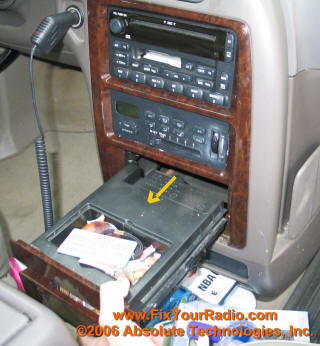

Figure 4 - Tray Removed

Use your index finger to push in the buttons in on each side of the ashtray and then pull the tray out...it should slide all the way out of the panel.

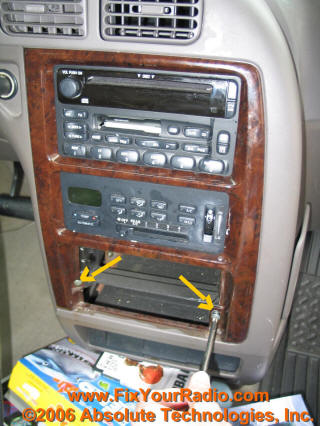

Figure 5 - Remove Two Screws

Using a phillips screwdriver, remove the two screws, one on each side, holding the front panel in place.



Figure 6 -
Pry Panel Loose

With the screws removed, position your fingers in the seam above the A/C vents where the panel connects to the dash.  With a little luck, you should be able to pull this portion of the panel from the dash.  It takes an action that pivots the panel at the bottom (below the ashtray) where it connects to the bottom.  So, pull from the top, while pivots below where it connects.

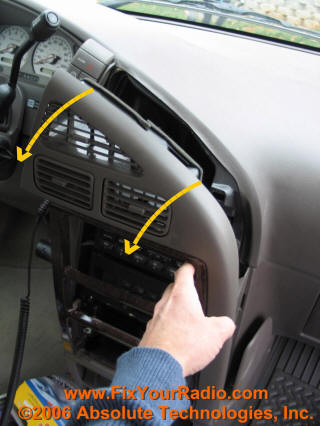

Figure 7 - Panel Pivot

So, pull from the top, while pivoting below where it connects, as shown in Figure 7.

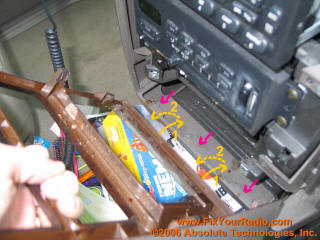

Figure 8 - Interlocking Tabs

In Figure 8, the pink arrows point to the interlocking tabs of the front dash.  There are slots in the front panel (that you are trying to remove) that hook onto the tabs.  Once you get the top loose and pulled from the dash, you should be able to push the bottom of the panel in (label step 1 in figure 8), then lift up and out (step 2 in figure 8).  Your panel should be free to set aside.

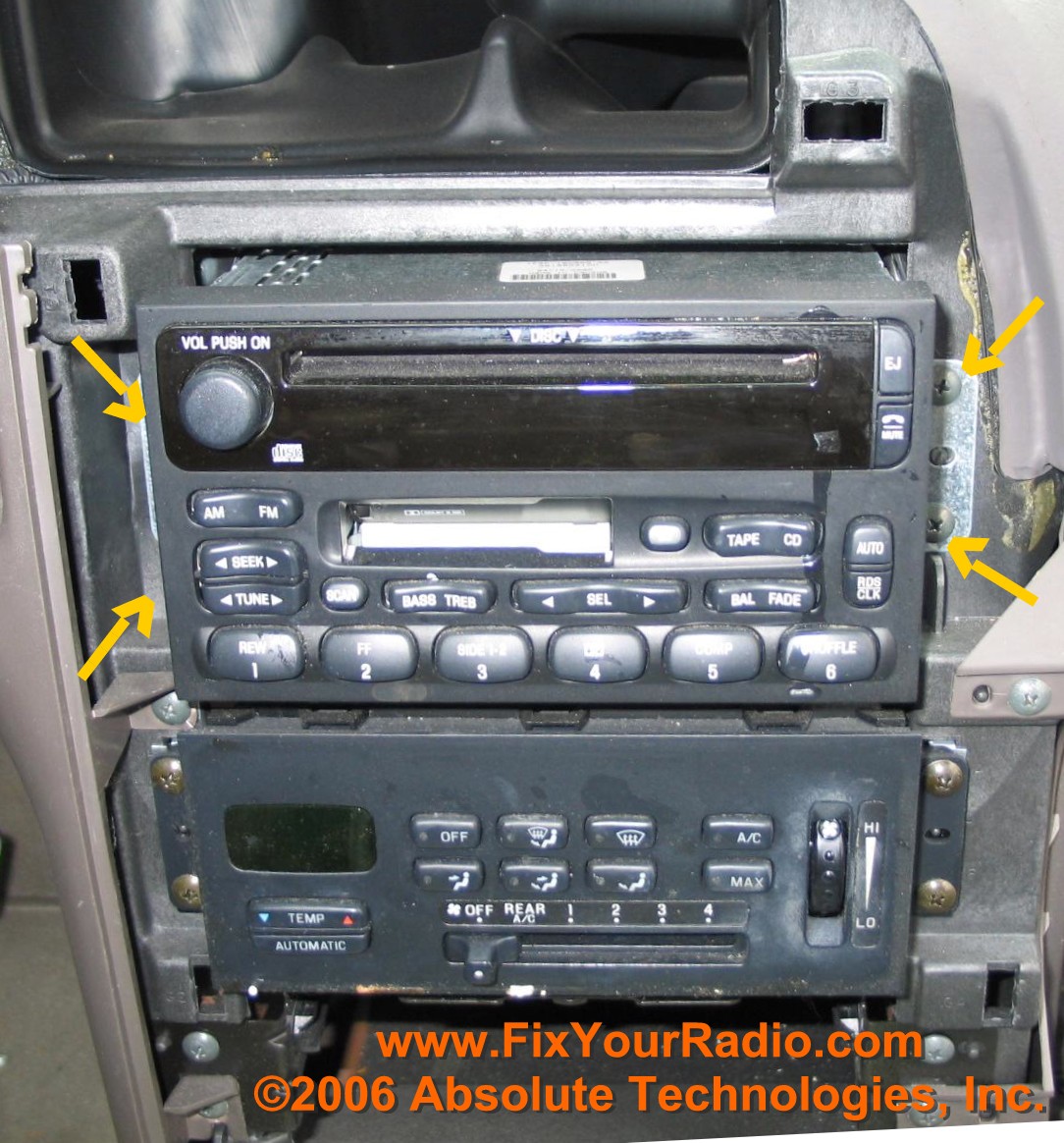

Figure 9 - Radio Screws

Remove the 4 screws shown in Figure 9 and then you should be able to slide your radio out of the dash (but it will still be connected to the wires within the dash)

.
Figure 10 - Back of Radio Connectors
(this is actually a picture from an Explorer, but the layout is the same buy you won't have the white plastic piece...if you are that detailed oriented to notice that)

Figure 10 shows the three connectors and the antennae coax connection that needs to be removed.  NOTE: You may only have TWO Connectors if your vehicle doesn't have a powered subwoofer...so don't be alarmed of you only have two plus the antennae.  The order in which I remove these are numbered...first the antennae coax is disconnected, followed by the three connectors (installation is the reverse process...4, 3,2,1).  Note that the connectors have tabs on them which need to be depressed to be able to pull the connector out of the radio.

You should now have your radio out of the dash...you can move on to the Fix!
